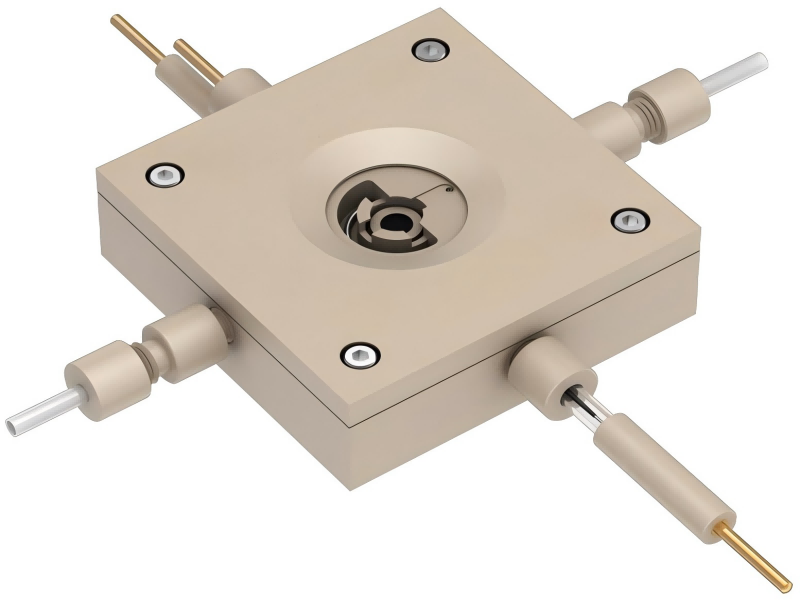

Model

SEC080

Material

u Cell body is PEEK+ high purity Titanium

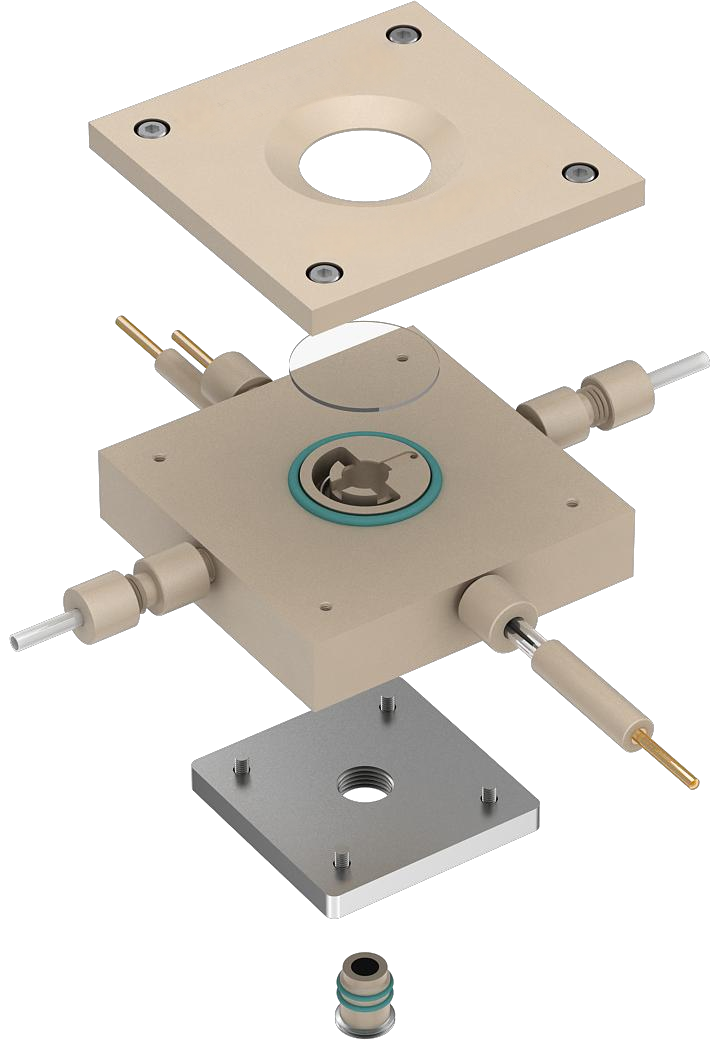

u User friendly design, it is convenient to assemble or disassemble the cell or for cleaning.

Specification

u Optical Window dia.:25mm

u The distance between the WE and Optical Window:＜6mm

Feature

u For investigate and study In-situ spectral and morphology changes of electrode materials in electrochemical experiments.

u The working electrode(WE) is located right below the perspective window, this enables the optical instrument to observe the working electrode through the quartz window.

u This In-site Raman Spectral electrochemical cell can be used for in situ electrochemical testing of the flow system or simply filling electrolyte into it by injection.

u Standard WE is 5mm glassy carbon electrode, the user can choose Au electrode, Pt electrode or Silver electrode as well (price is different then).

u Standard RE is AgAgCl or Ag+ electrode

u Standard CE is Pt wire counter electrode
