In-situ Raman Electrolytic Cell

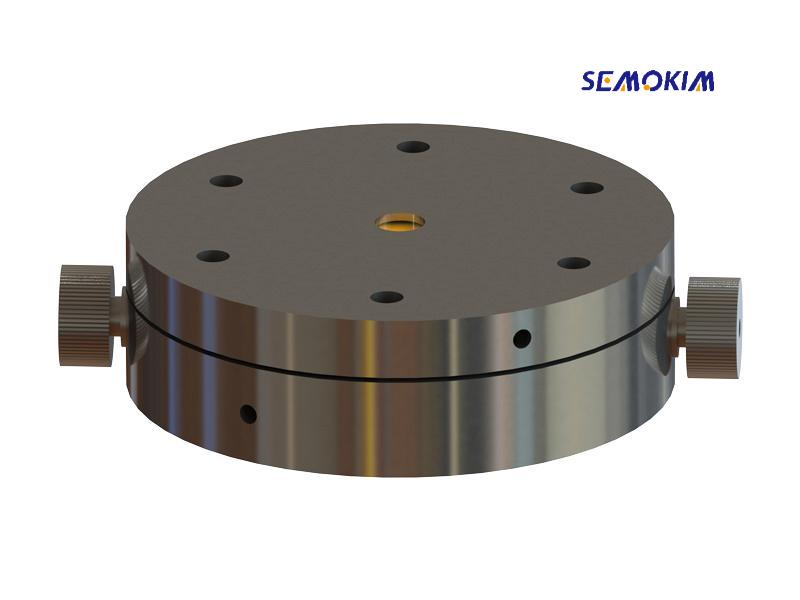

In-situ Raman Battery Test cell (2-electrode+ventilation+cathode protection) | |
Model | SEC076 |

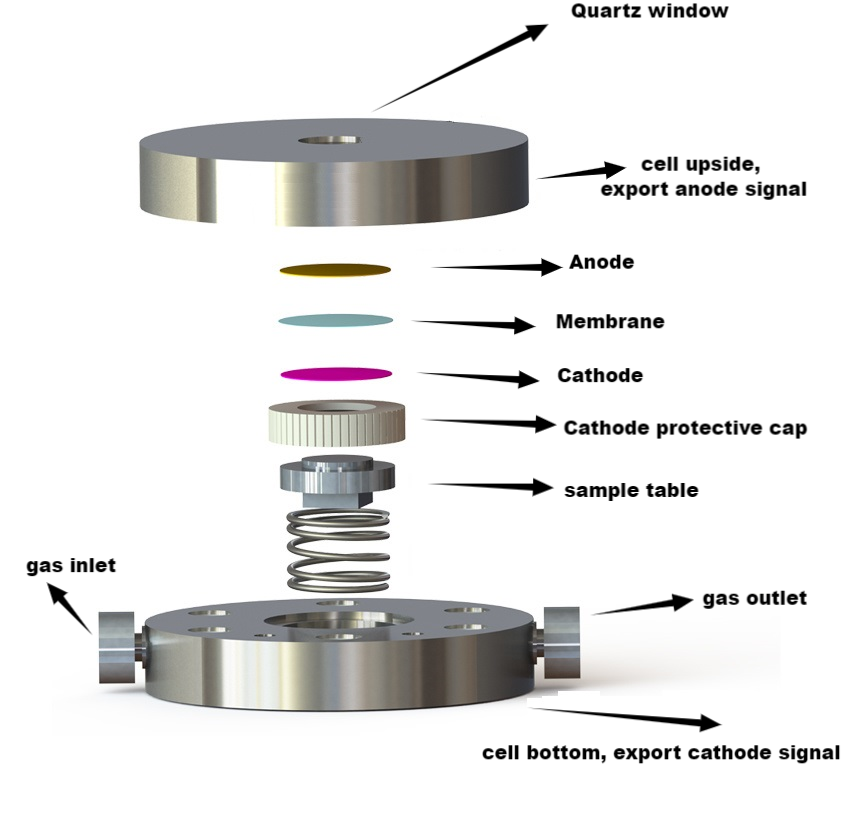

Material | u Cell main part: SS316 u Sealing part: PTFE, Fluororubber u Window plate material: Quartz |
Specification | u External size:Ø54*19mm u Quartz window effective size: Ø5, Ø8 or Ø10 u The distance between specimen and window:0.3mm u Window plate thickness: 0.5mm u Suitable specimen installation size: Ø12- Ø16 ( for Ø5mm window); Ø15 - Ø16 (for Ø8mm window) u Inner chamber diameter: Ø16 |
Feature | u Available to ventilate and test under gas circulation conditions u The cathode membrane protection can reduce the wastage of cathode side and effectively prolong experiment time |
