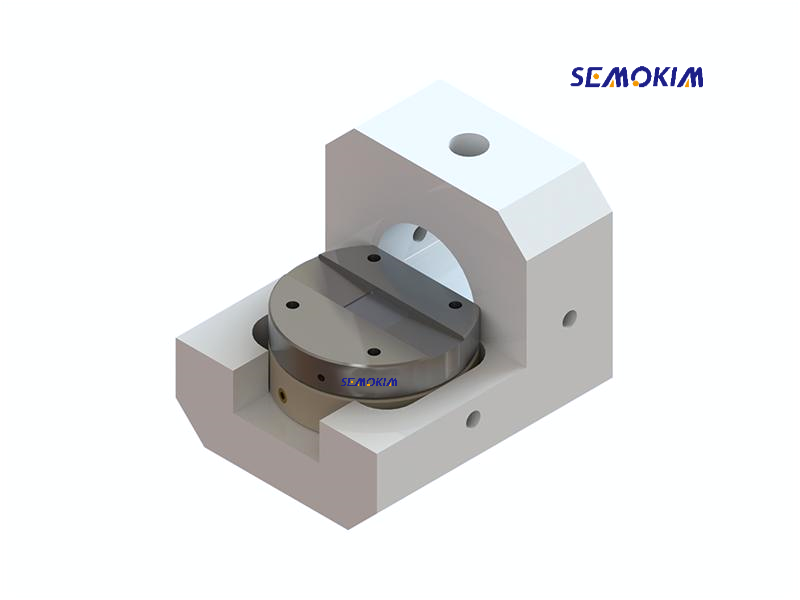

Model

Model:SEB071

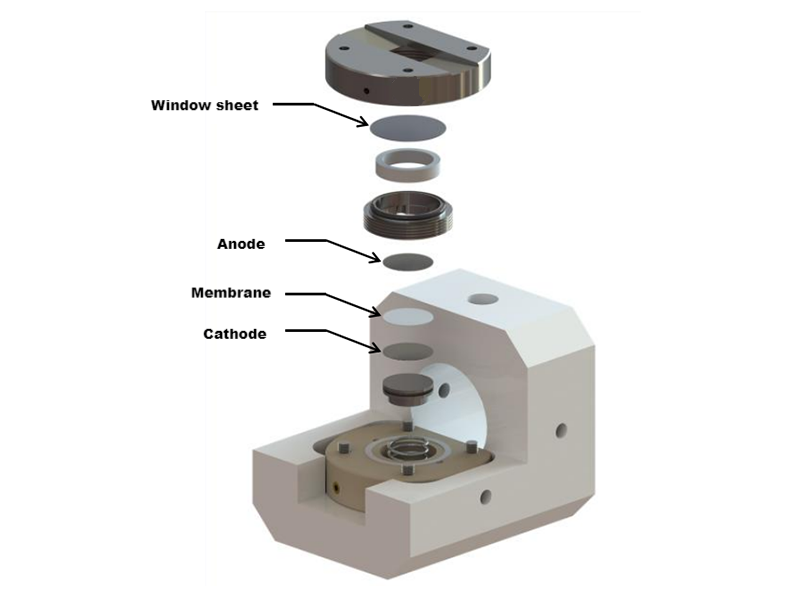

Specification

u The cell external dimension Ø52*22.5mm

u The window Be sheet specification of Ø24*0.2mm; effective window 12*14mm

u Available anode and cathode size ≤ Ø16

u Each set contains 3 pcs beryllium plate

Feature

u Applicable to Japan Rigaku XRD mini

u For Charging and discharging test of battery

u It can be used for In-Situ XRD measuring of battery electrode material

u Full sealed equipment, easy to dismantle and clean

u Material: Stainless steel(upside)+Peek(bottom)

u Optional Kapton Window sheet

u Customized Lithium-Air XRD In-Situ cell is available
